02-17-2011, 07:45 PM
Robehouse | Nose Gear steering Rotary Actuator
looking for a nose gear steering rotary actuator. Any ideas. Thanks
JR
02-22-2011, 10:25 PM
keithw | NOSE gear actuator
Hi Robehouse I have a new hyd. nose gear actuator bought from S N A and Ive never used it. If intereste will look up costs etc. Keith Walljasper N80CC
02-23-2011, 09:49 AM
Tony Jurcan | Nose Gear Actuator Mods
Keith,
Can you describe the modifications or replacements you made to your nose gear actuator.
Tony Jurcan
02-23-2011, 02:34 PM
Robehouse | NOSE gear actuator
Hi Keith, Yes, very interested, can you sent a picture to RobeHouse@cox.net also how much are you asking. Thank you..Jerry Robelen 702 234-4737
02-27-2011, 04:39 PM
keithw | NOSE gear actuator
Hi Tony and Robehouse Been real busy as of late but will get pict/ price for you. Tony forgive me but its been 11 years since I built that nose gear. S N A came out with the hyd steering after I started building my plane.
and I will need to think this out, John, at Planemakers would have all the details. Note, it takes more than just the actuator to make this work. Well worth every penny spent and hour spent installing it. Keith Walljasper N80CC
03-07-2011, 10:27 PM
keithw | Nose Gear Actuator
Hi JR Finally found the hyd ACTUATOR IN MY (*&))% hanger. It is Rotac Actuator MPJ-22-1V 1000psi max. Micromatic Textron Company Berne, Indiana It has never been used or mounted in the plane. Keith 309 530 3097
04-20-2011, 11:08 PM
Tom Saccio | Nose Wheel Steering
I recently wrote that I was having problems with my nose wheel steering. The nose wheeling is moving to the right with me touching the switches. Some of you wrote back saying that it could be dirt hanging up in the valves. If that is the case how do I fix it? Do I have to disassemble the whole manifold to clean it or is there another way? Need help, looking for advice. Tom Saccio
04-21-2011, 07:24 AM
Mike
Hi Tom,
I have not had to disassemble the entire manifold, however I did have to remove one of the valves from the manifold to clean the seat three years ago. It's not really that hard, just lots of time.
08-15-2014, 07:07 AM
Mike

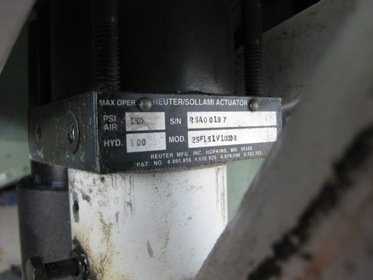

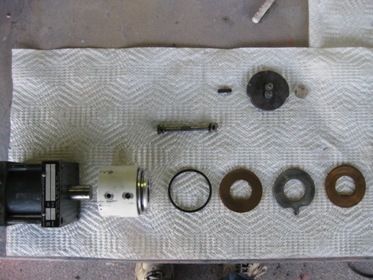

Finally found the picts.....
08-20-2014, 11:43 PM
keithw | nose wheel steering
Mike I am going to need to re O-Ring mine. Can you tell me where I can get the parts. Thanks Keith
02-09-2015, 02:20 AM
Rusty
We are reassembling nose gear after Bill Hayes showed me mods for through bolting at the fork and welding reinforcement at the oleo attachment ears. We've misplaced (or never had) the top cap. Anybody got a drawing? Was it aluminum or bronze? It appears to provide the bearing surface at the top.
I dimly remember an old newsletter about stuffing the annulus with grease and stacks of split o-rings for enhanced damping. Anybody remember this?
What size o-rings? Makes me wonder if two greasy bronze to steel surfaces are enough to do the job
From Bill, I hear that the piston inside the main gear oleo is subject to breaking. Is Evansburg Tool the source for this?
02-09-2015, 12:40 PM
Mike
Evansburgh tool is the goto for oleo's. I do not know if the nose actuator and associated parts can be purchased from them also. Please let me know if we can
If anyone has a spare hyd nose gear actuator and parts, please let me know.....L@@King for one.
